Digital Display LCD Multi-function Power Meter

Product information:

Name: Multifunctional power meter
Hole size: 76X76 91X91 68X68 110*110
Display mode: liquid crystal display digital display
Model: RL18-E (digital type)
RL18-Y (Liquid crystal type)
Auxiliary power supply: AC 380V/220V AC/DC 85~265V
AC/DC 24V~60V
Wiring mode: three-phase three-wire/three-phase four-wire
Communication: MODBUS-RTU protocol, RS485 communication
Overload capacity: voltage (1.2 times the rated value continuous,
1.5 times the rated value for 10 seconds)
Current (10 times the rated value for 10 seconds)
model:

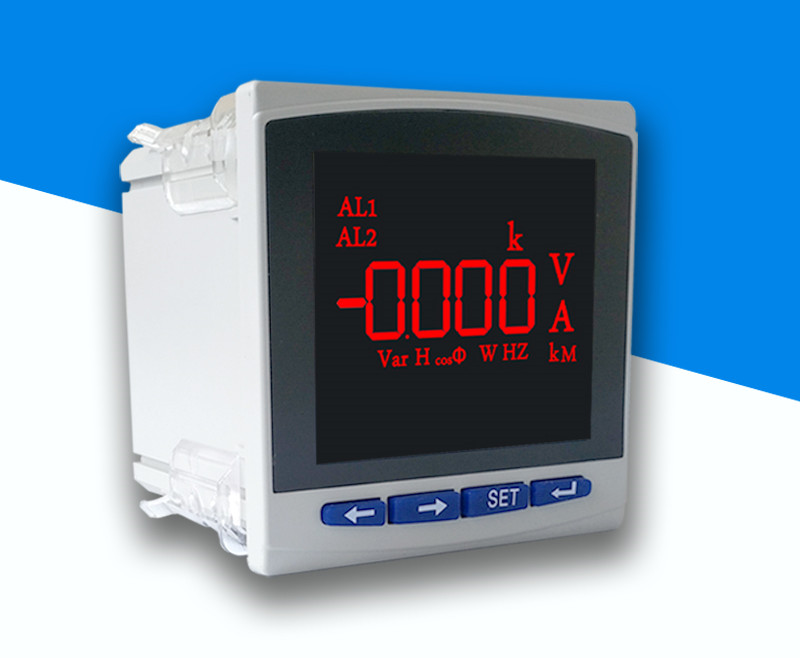

Type1: Digital multi-function meter

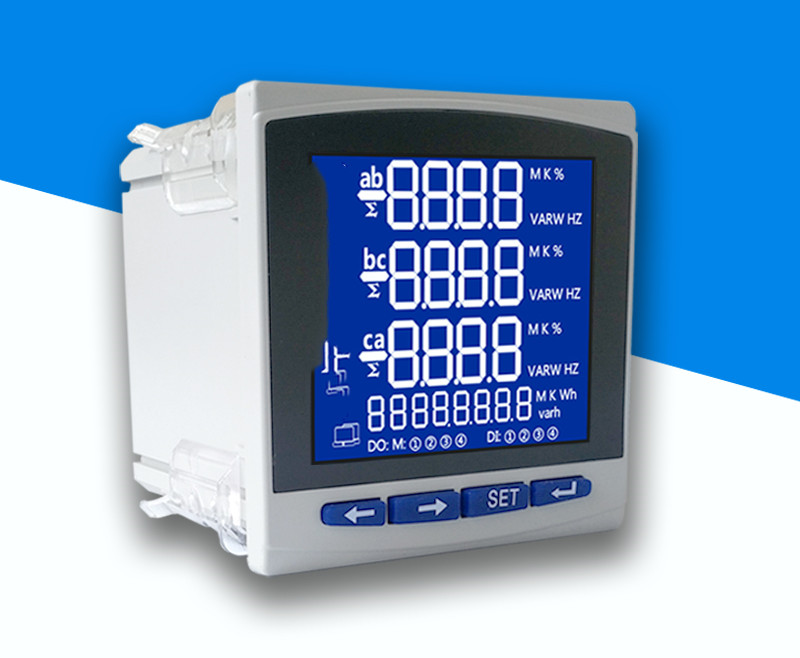

Type2: LCD multi-function meter

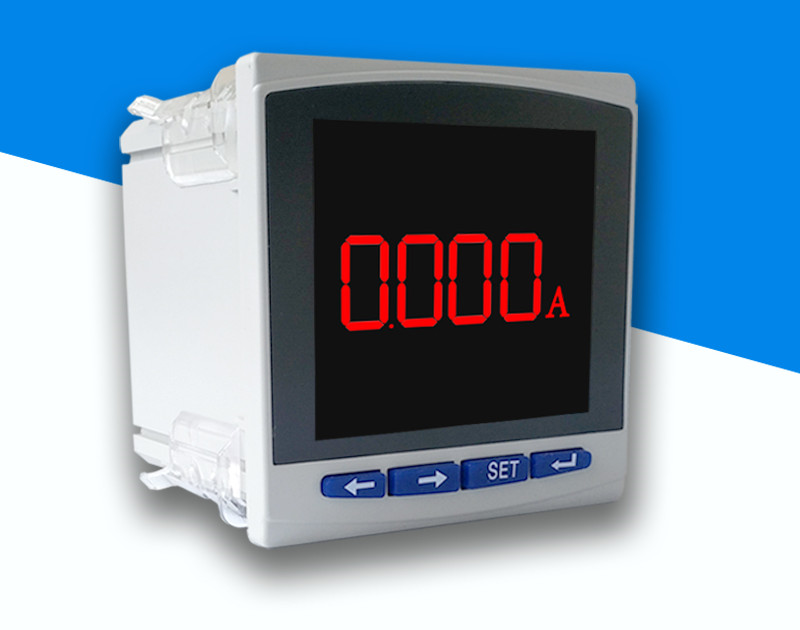

Type3: Single-phase ammeter

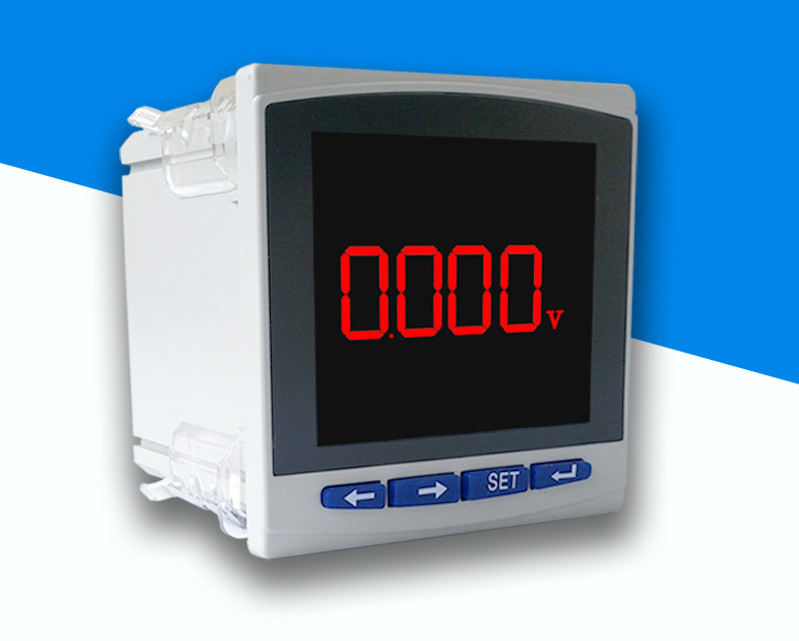

Type4: Single-phase voltmeter

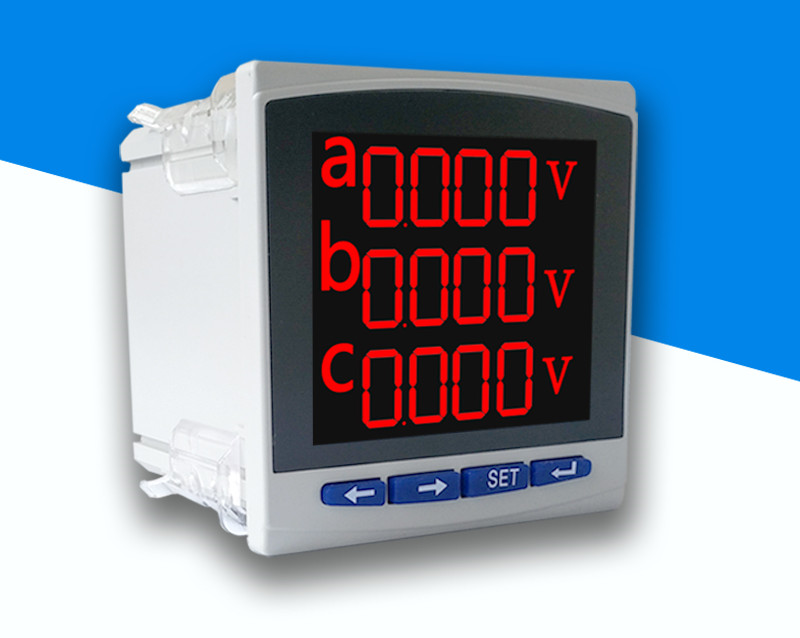

Type5: Three-phase voltmeter

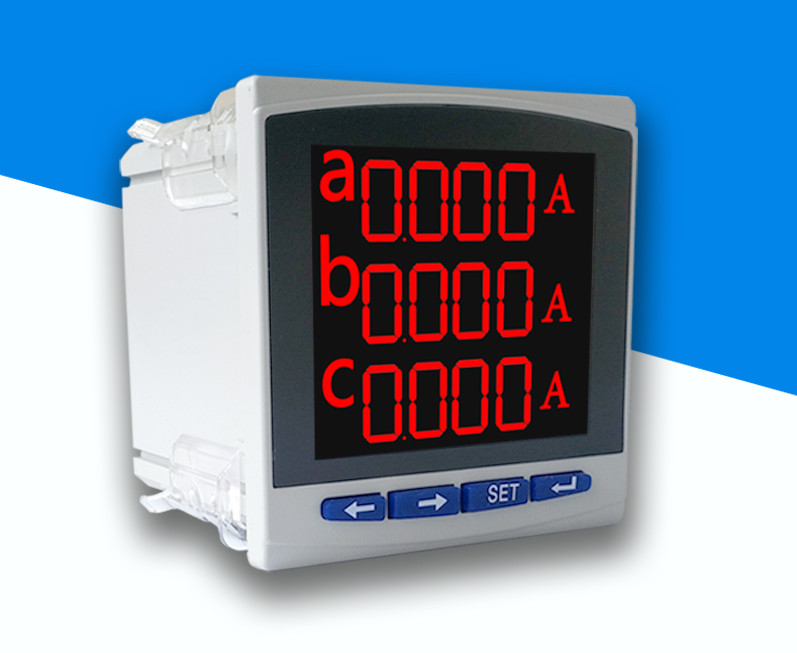

Type6: Three-phase ammeter

Packing list:

Power meter*1
